* Image for representation only — actual product may varySolar Irrigation Valve
Motorised Ball Valve · Solar Powered · Quoted per Project
In Stock

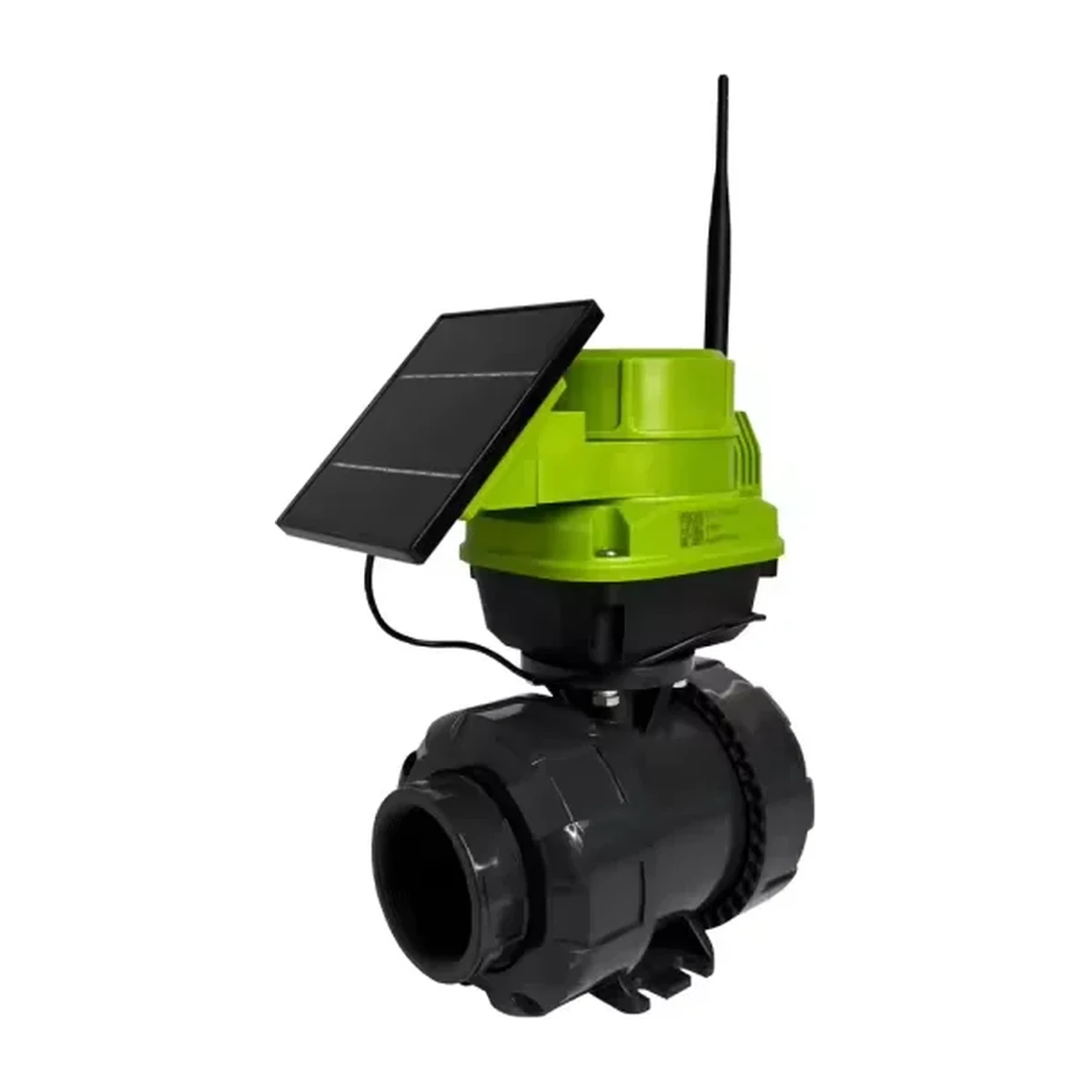

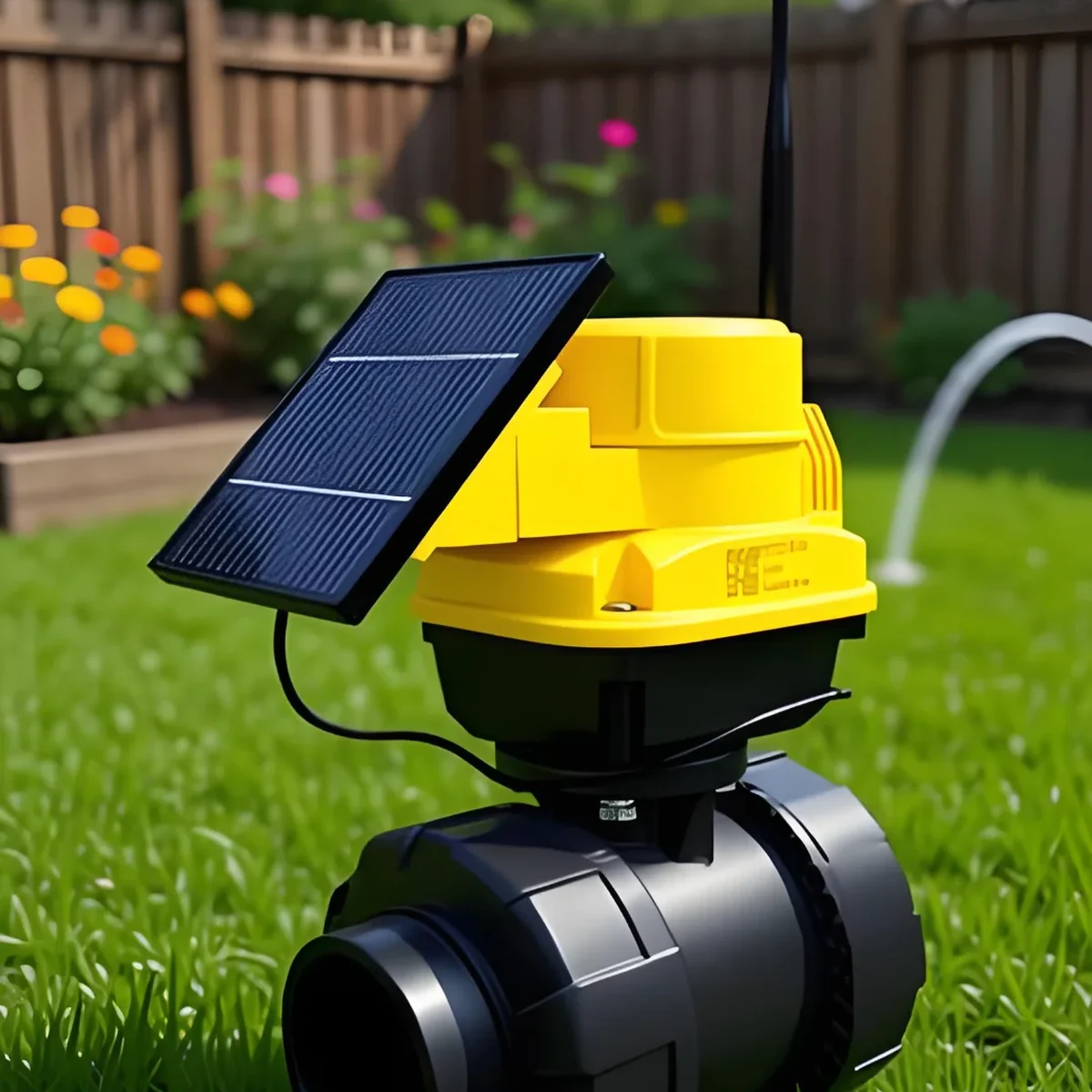

A motorised ball valve with its own solar panel, so a zone can be opened and closed from the app without running power or control cable out to it. It is the piece that turns a pump controller into real irrigation: the pump decides whether water is moving, the valve decides where it goes. Sizes from half an inch to two inches, driven on 9–30V DC, with a manual override on the actuator for the day somebody needs water now. Quoted per project.
₹ Contact for Price
Varies by installation scope · Bulk discounts available
Quantity
1
Secure Order
Free Demo
Reply within one working day
✓ 2-way motorised ball valve · ✓ 1/2 inch to 2 inch (DN15–DN50) · ✓ 9–30V DC · ✓ Solar panel + internal battery · SKU: NX-VALVE-050
Specifications
Full Technical Specifications
Valve Type2-way motorised ball valve
Sizes1/2 inch to 2 inch (DN15–DN50)
Drive Voltage9–30V DC
PowerSolar panel + internal battery
ControlApp · schedule · soil moisture · wireless remote
Field WiringNone — no power or signal cable to the zone
Manual OverrideAt the actuator
BodyUPVC union ball valve
FluidWater, including high-temperature lines
Pairs WithWater Level Controller · Floor Hub
Product Details
What's Inside

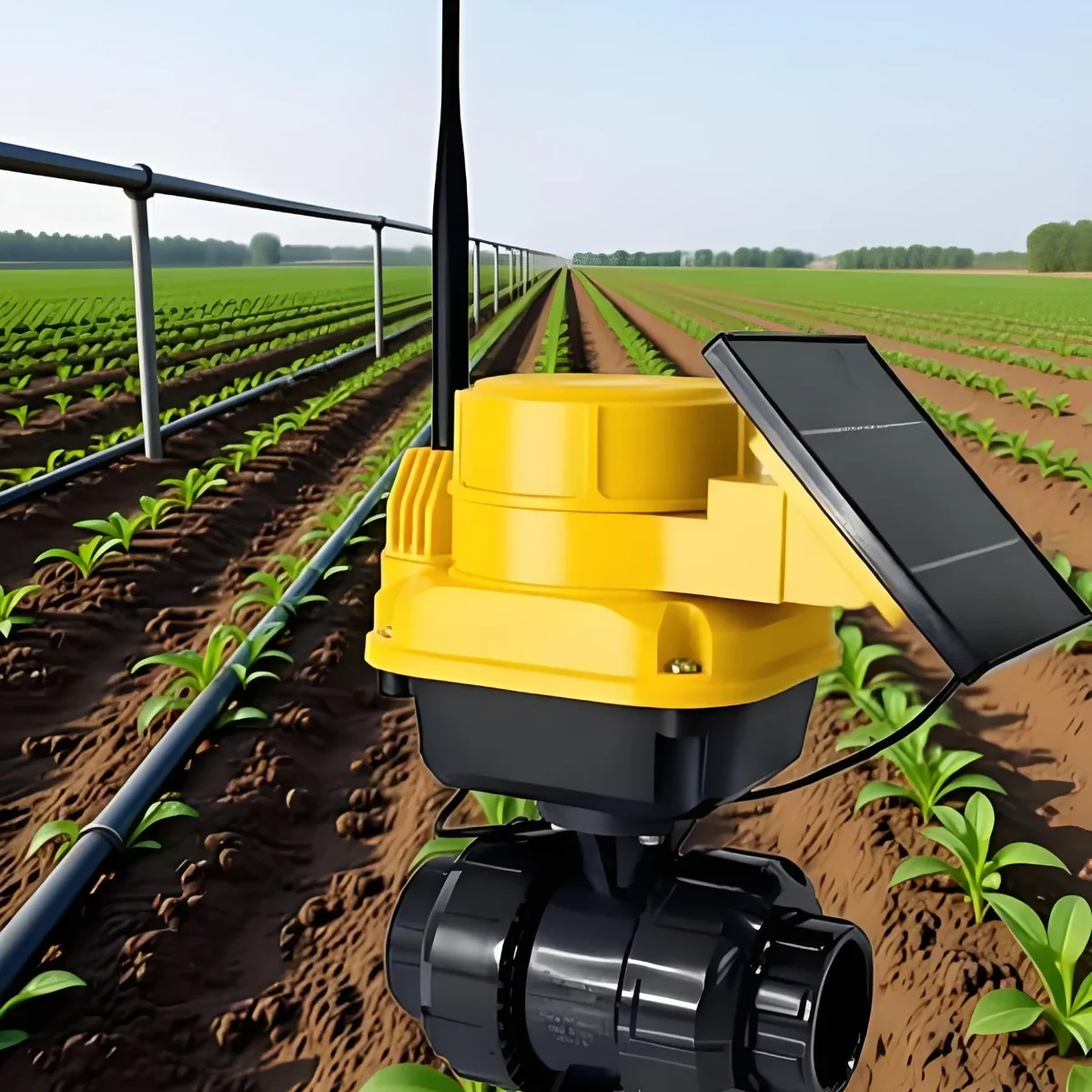

- Zone irrigation: Open one block at a time so the pump delivers full pressure to the zone being watered.
- Far corners of a plot: A valve at the far end costs a mounting clamp, not a trench.
- Pump and tank systems: Pairs with the Water Level Controller and the Floor Hub; the pump decides whether water moves and the valve decides where it goes.
- Hot water lines: Suitable for water, including high-temperature lines.
SKU: NX-VALVE-050
Category: Agri
Setup Process
How It Works
1
Plan the Zones
Decide which blocks are watered separately and the pipe size for each, from 1/2 inch to 2 inch.
2
Fit the Valves
Each motorised ball valve goes into its line with its own solar panel. No power or control cable runs out to the field.
3
Link to the Hub
The valves pair with the hub alongside the Water Level Controller.
4
Set the Timetable
In the app, set the duration and start time for each zone, or let soil moisture decide. Timed schedules need the internet connection, and the actuator can always be turned by hand.
Key Features
Built for Indian Homes
No Cable to the Zone
The solar panel powers the actuator where it stands. A valve at the far end of the plot costs a mounting clamp, not a trench.
Zone-by-Zone Irrigation
Open one block at a time on a schedule, so the pump delivers full pressure to the zone being watered instead of a weak flow everywhere.
Waters on Soil, Not on Habit
Soil moisture can hold the valve shut after rain and open it when the block actually dries out — the rule runs locally, at the hub.
Manual Override
The actuator turns by hand. Automation that cannot be overridden at the valve is not something to put on a farm.
Runs to a Timetable
Duration and start time per zone, set in the app. Timed schedules need the internet connection.
Integrations
Smart Home Platform Integration.
Solar Irrigation Valve is controlled from the Nexomatic app. Android is available now as a direct download; iOS is coming soon.
Download
Nexomatic App
Stay Connected – Download the App
Control it from your phone. Android available now as a direct download; iOS is coming soon.
DOWNLOAD FOR
Android · APK
iOS
Coming soon
Where this is used
The same hardware, configured for what the building does. See how it is deployed:
Also Consider
Related Products
Frequently asked questions
Do I need to run power cable to the field?
No. Each valve has its own solar panel and internal battery, so there is no power or control cable to the zone.
Does it keep watering if the internet is down?
Timed schedules need the internet connection, so plan for that on sites with unreliable broadband. The actuator can always be turned by hand.
What pipe sizes are available?
1/2 inch to 2 inch (DN15 to DN50), as a UPVC union ball valve.
Can I open the valve by hand?
Yes. The actuator has a manual override for the day somebody needs water now.
What is the price of the solar irrigation valve?
It is quoted per project, because it depends on the number of zones and pipe sizes. Call +91 75500 58208 or book a site visit from the contact page.
