Floor Hub

Zigbee Coordinator + Local Rules · One Per Floor

In Stock

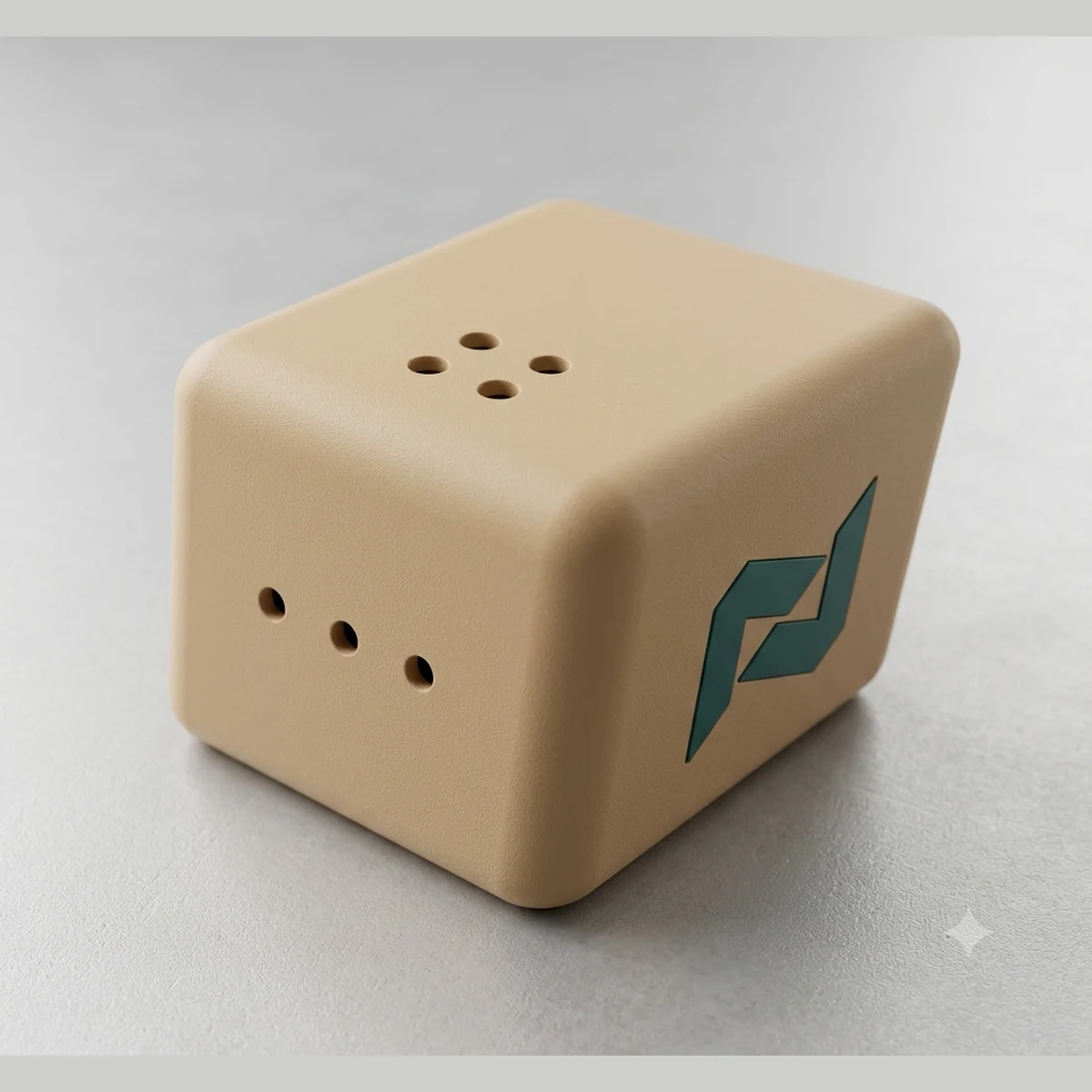

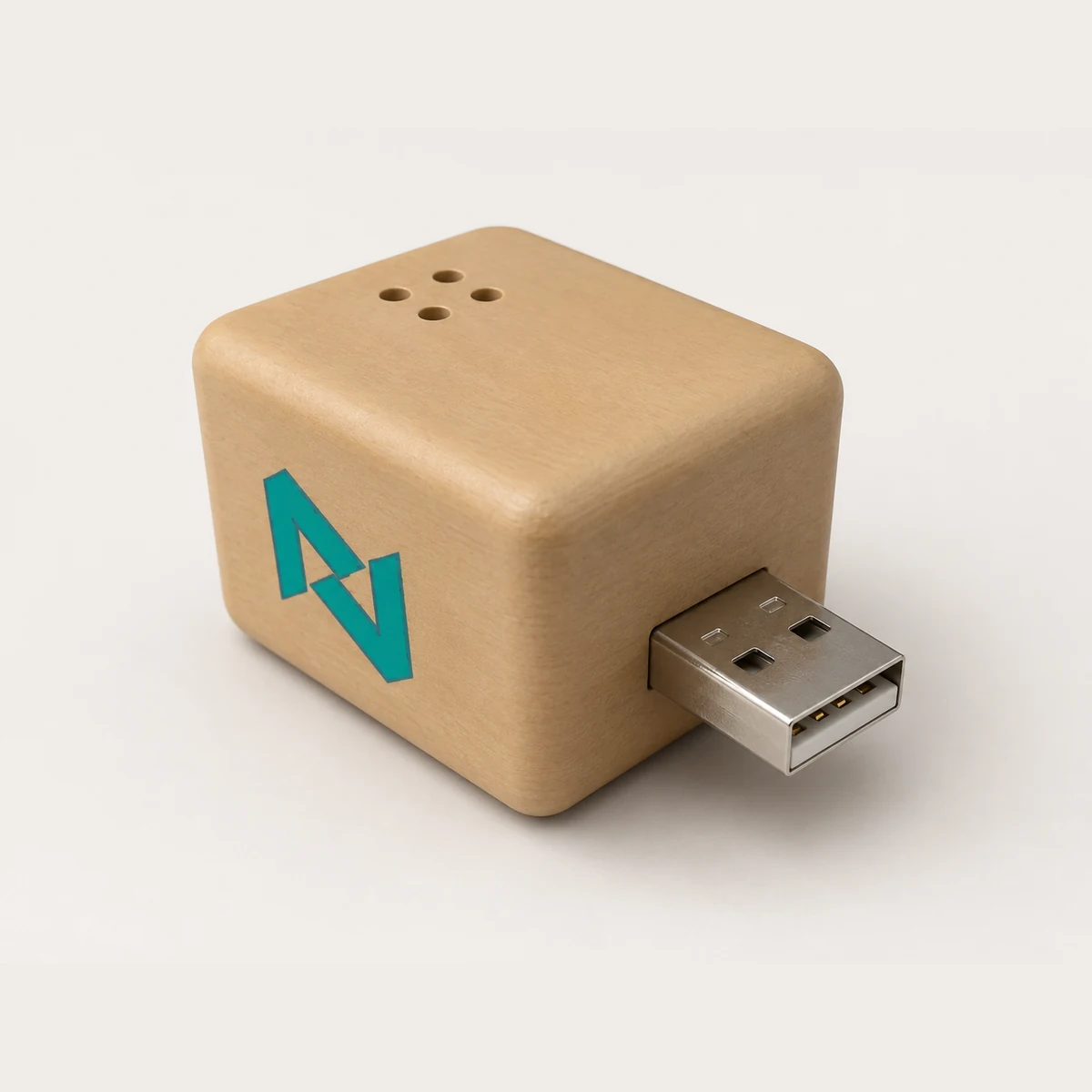

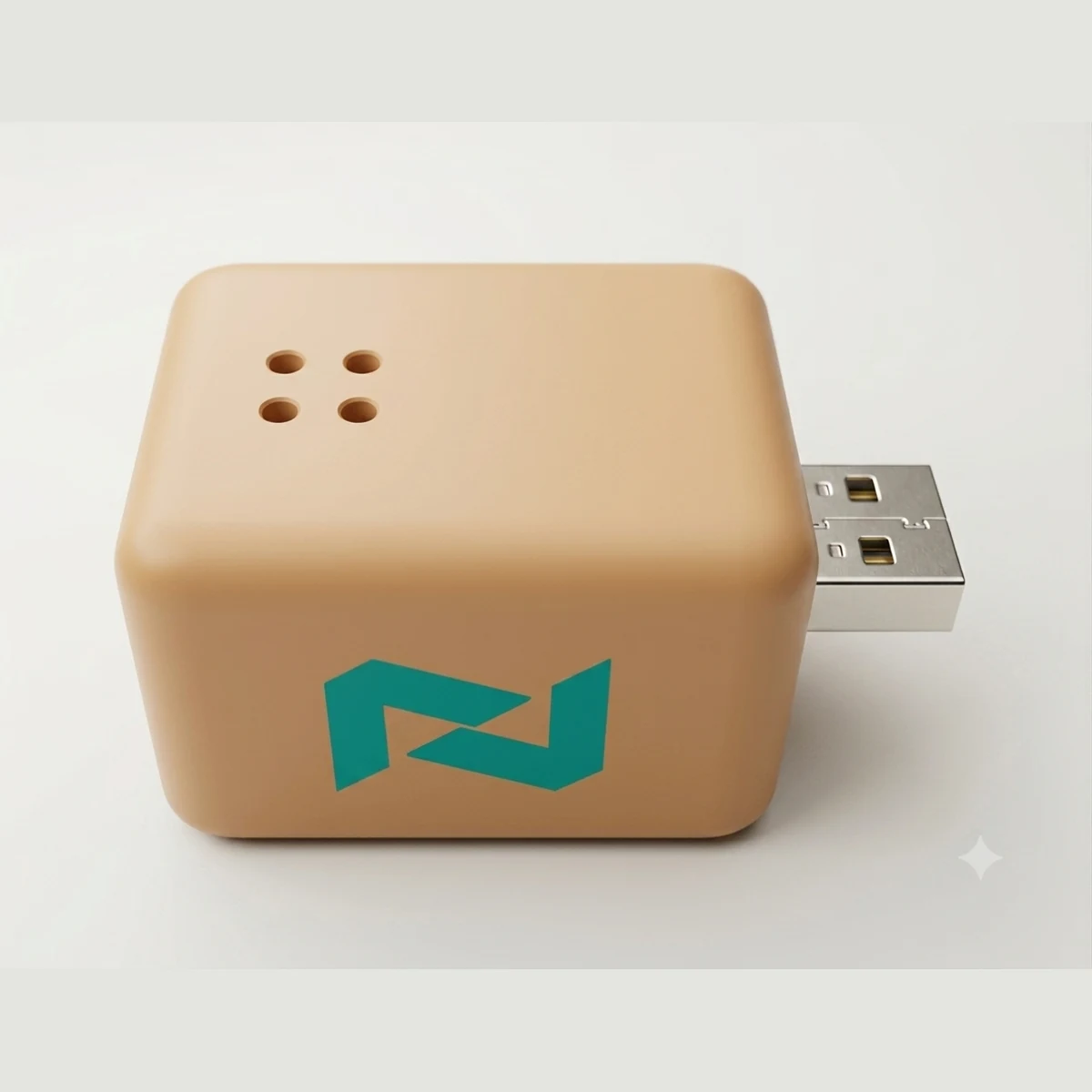

A matchbox-sized hub that plugs into any USB charger and gives a floor its own brain. It is the Zigbee coordinator our breakers, meters and battery sensors join, and it runs automation rules and safety limits locally — so a floor keeps its rules and protections running when the internet, the router or our servers are down. Timed schedules need the internet connection, and alerts to your phone wait for it to return. Updates arrive over the air, and the configuration survives every one of them.

₹ Contact for Price

Varies by installation scope · Bulk discounts available

Quantity

Secure Order

Free Demo

Reply within one working day

✓ Zigbee 3.0 · Wi-Fi 2.4 GHz · ✓ Zigbee coordinator — our mesh, no vendor gateway · ✓ USB-A, any 5V charger · ✓ Run on the hub — no cloud in the loop · SKU: NX-HUB-001

Specifications

Full Technical Specifications

RadiosZigbee 3.0 · Wi-Fi 2.4 GHz

RoleZigbee coordinator — our mesh, no vendor gateway

PowerUSB-A, any 5V charger

Local RulesRun on the hub — no cloud in the loop

OfflineRules and safety limits keep running

CoverageOne per floor

UpdatesOver the air, configuration preserved

DiagnosticsLocal page on your own network

OriginDesigned in Coimbatore, India

Product Details

What's Inside

Homes: Give each floor its own hub that runs automation rules locally.
Cold storage: Enforce freezer duty limits close to the hardware.
Water tanks and pumps: Enforce dry-run and overflow protection at the hub.
Farms: Run pump protection and sensor rules on the hub, close to the hardware.
Offices and industrial sites: Run breakers, energy meters and battery sensors on your own Zigbee mesh.

SKU: NX-HUB-001

Category: Controllers

Setup Process

How It Works

Plug It In

Connect the Floor Hub to any 5V USB charger, a power bank or a spare USB port on the router. One hub per floor.

Connect to Your Account

Add the hub to your Nexomatic system so it appears in the app for that floor.

Pair Your Devices

Breakers, energy meters and battery sensors join the hub's Zigbee mesh.

Set Rules and Forget Them

Create rules and protections in the app. They run on the hub itself and keep working when the internet is down; timed schedules need the internet connection.

Key Features

Built for Indian Homes

Rules Hold Through an Outage

Automation rules and safety limits run on the hub itself and keep working through an ISP outage. Timed schedules need the internet connection, and alerts to your phone wait for it to return.

Our Own Zigbee Mesh

Breakers, energy meters and battery sensors join this coordinator — not a third-party gateway with its own cloud account in the control path.

Zigbee 3.0 and Wi-Fi

Zigbee 3.0 for breakers, meters and sensors, and 2.4 GHz Wi-Fi to reach your router.

Protections That Do Not Blink

Dry-run, overflow and cold-storage duty limits are enforced here, close to the hardware, so a network problem cannot disable a safety rule.

Updates Over the Air

New firmware arrives remotely and rolls back on its own if an image misbehaves. Your device map, pairings and settings are never erased by an update.

Plugs Into Anything

USB-A into a phone charger, a power bank or a spare port on the router. No DIN rail, no wiring, no electrician.

Integrations

Smart Home Platform Integration.

Floor Hub is controlled from the Nexomatic app. Android is available now as a direct download; iOS is coming soon.

Download

Nexomatic App

Stay Connected – Download the App

Control it from your phone. Android available now as a direct download; iOS is coming soon.

DOWNLOAD FOR

Android · APK

iOS

Coming soon

Where this is used

The same hardware, configured for what the building does. See how it is deployed:

Also Consider

Frequently asked questions

Does the Floor Hub work without the internet?

Partly. Automation rules and safety limits run on the hub and keep working through an ISP outage. Timed schedules on hub-based sites need the internet connection, and alerts to your phone wait for the connection to return.

How many hubs do I need?

The Floor Hub is designed as one per floor, so each floor has its own local brain.

How is it powered?

From USB-A on any 5V charger, a power bank or a spare USB port on your router. No wiring or electrician is needed.

Will an update erase my settings?

No. Updates arrive over the air and roll back on their own if an image misbehaves. Your device map, pairings and settings are never erased by an update.

Do I need a separate Zigbee gateway?

No. The Floor Hub is the Zigbee coordinator itself, so no vendor gateway or third-party cloud account sits in the control path.

What does the Floor Hub cost?

Pricing is quoted per site, based on the floors and devices you need. Contact us for a quote.
